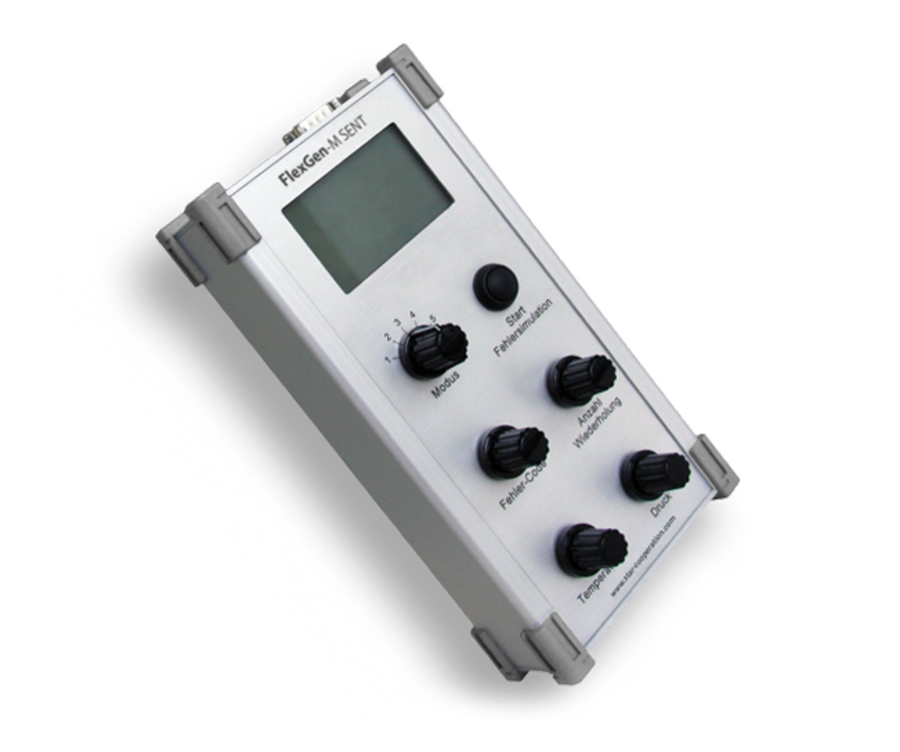

FlexGen-M SENT

FlexGen-M SENT

SENT-Simulator
Article number: 70007746
This is a versatile, mobile, autonomous platform with which sensor data can be recorded, processed and generated. The FlexGen-M Sent reads out connected SENT sensors and simulates virtual sensors. The unit also provides various signal manipulation functions, such as to test the limit value behavior of specific connected control units
  • Description
  • Technical details
  • Downloads
Description

Product information

The FlexGen-S SENT is a variably usable, mobile and self-sufficient platform that offers comprehensive options to gather, process and generate sensor data. By doing so, it is both possible to read out connected SENT sensors and to simulate virtual sensors.

Advantages
  • Display, simulation and manipulation of sensor data
  • Integrated error simulation
  • Manifold configuration options for discretional sensors
Technical details

FlexGen-M SENT
Supply voltage
8 - 28V LEMO EXJ.1B.302.HLD
Operation temperature
-20°C to +60°C (extended tempera-ture range possible on demand)
Display
4x20 characters, LC display

3x LEDs (Rx, Tx, event button)
Handling
1x rotary switch

2x rotary encoder

1x event button
SENT receiver
LEMO EGG.1B.303.CLL
SENT transmitter
LEMO EGJ.1B.303.CLA
Synchronization
Sub-D 9 pol. Stecker (incl. CAN)
Dimensions
200 x 106 x 60 mm
USB
USB 2.0 Full-Speed (USB Device)
