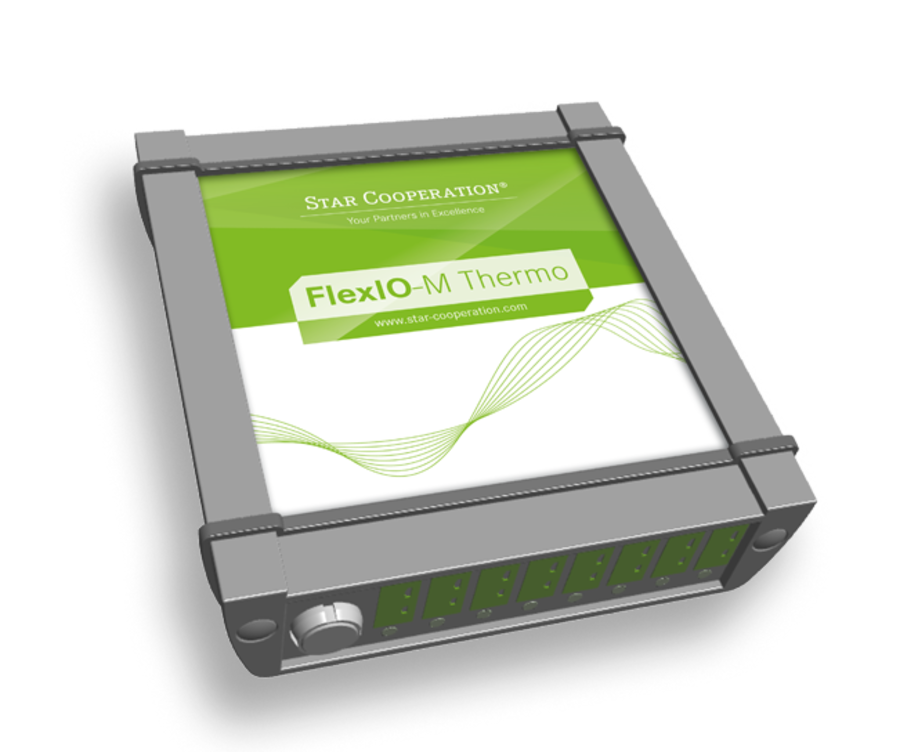

FlexIO-M Thermo

FlexIO-M Thermo

Thermal measurement module M
Article number: SW10006
The FlexIO-M Thermo is likewise a thermocouple measuring module for electrically isolated temperature measurement. This variant offers eight type K thermocouple connections.
  • Description
  • Technical details
  • Downloads
Description

Product information

The thermal element measurement module FlexIO-M Thermo facilitates a galvanically separated temperature measurement by evaluating 8 type K thermal elements. These measurement values are exported cyclically via the CAN interface. It is suitable for operating in 12 V, 24 V and 48 V on-board networks due to its large supply voltage range of 6 V to 60 V. With its operating temperature range of -40°C to +85°C, it is ideal for use in test benches and test vehicles.

Advantages
  • Temperature measurement of -100°C up to +1372°C
  • Variation with 8 channels
  • Big supply voltage range of 6 V – 60 V
  • Galvanically separated measurement
  • Measurement value output on CAN bus
Technical details

FlexIO-M Thermo
Supply voltage
+6 VDC to +60 VDC
Measurement output voltage
CAN bus (Highspeed ISO 11898-2 A and ISO 11898-2 B)
Sensor connections
8 type K thermal sockets (DIN IEC 584)
Measurement range
-100°C up to +1372°C
Resolution measurement inputs
Up to 24 Bit
Bandwidth
5 Hz
Sample rate
10 SPS
Measurement precision (@ Tu= 25°C)
+/- 0,2%
Temperature drift measurement inputs
t.b.a.
Configuration interface
USB 2.0
Operation temperature
-40°C to +85°C
type of safety
IP41
Dimensions (8 channel)
125 x 35 x 135 mm
