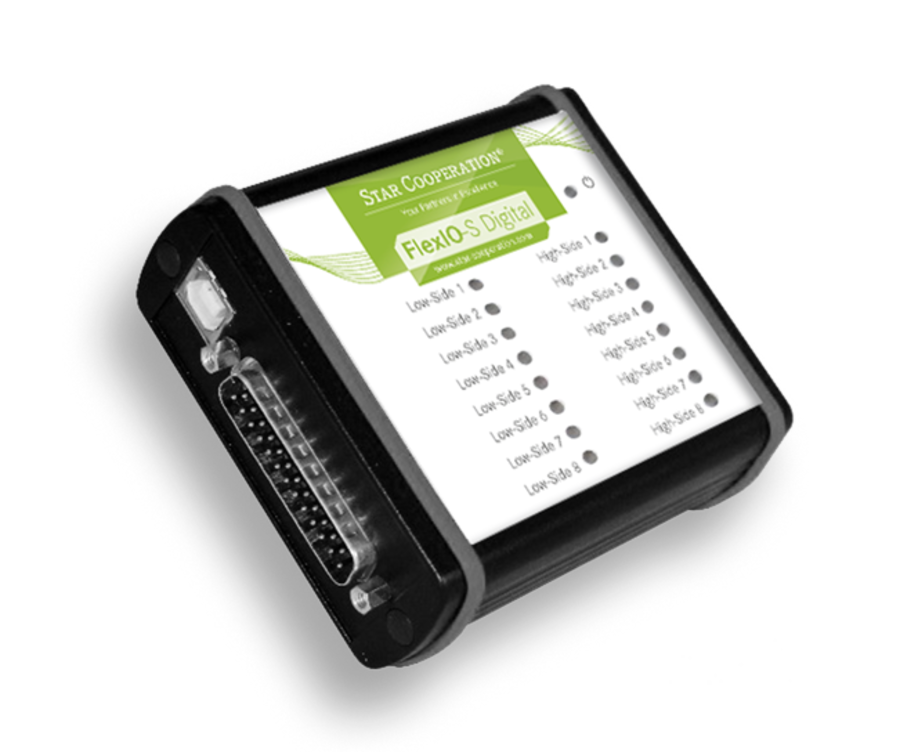

FlexIO-S Digital

FlexIO-S Digital

CAN Digital IO Unit
Article number: 70006450
With FlexIO-S Digital , data on a CAN bus can be converted into digital signals for status display or to switch external peripherals. Additionally, digital inputs can be read-in and their signals mapped and transmitted on the CAN bus. For the purpose, the hardware features a CAN interface as well as eight high-side and eight low-side channels which can be individually configured optionally as inputs or outputs.
  • Description
  • Technical details
  • Downloads
Description

Product information

With FlexIO-S Digital , data on a CAN bus can be converted into digital signals for status display or to switch external peripherals. Additionally, digital inputs can be read-in and their signals mapped and transmitted on the CAN bus. For the purpose, the hardware features a CAN interface as well as eight high-side and eight low-side channels which can be individually configured optionally as inputs or outputs.

Advantages
  • Stand-alone operation without PC connection
  • Consumer switch depending on CAN bus signals
  • 8 high side and 8 low side channels configurable as in- or output
Technical details

FlexIO-S Digital
Voltage supply
6 – 36 V
Operating temperature
-40°C to +85°C
In- and output
8x Highside (max. 1A) /
8x Lowside (max. 1A)
Interfaces
1x CAN High-Speed (optional: LIN 1.3/2.x)
Status LEDS
1x for each in- and output
Warning buzzer
Optional for high side output 8
Configuration
USB 2.0
Dimensions
90 x 85 x 35 mm
