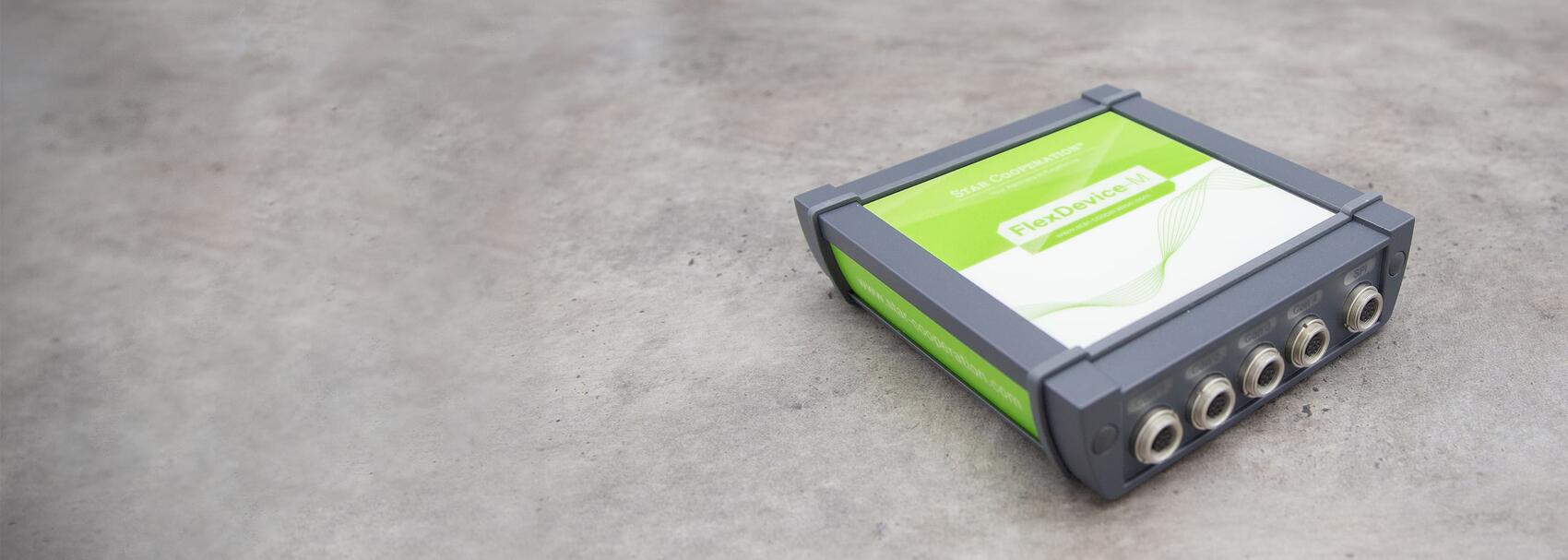

FlexDevice-M

Electronic platform

Article number: 3-V0280N02

FlexDevice-M is a robust electronic platform which is designed for the use in the automotive environment. Due to the fact that the Flex-Device-M supports many bus systems and has variable interfaces, it could be used in different application fields.

Product information

FlexDevice-M is a robust electronic platform which is designed for the use in the automotive environment. Due to the fact that the Flex-Device-M supports many bus systems and has variable interfaces, it could be used in different application fields.


Advantages:

  • PowerPC MPC5567 (120 MHz) with 2 MB SRAM
  • 5 bus channels (4 via pluggable transceivers)
  • Up to 5 CAN channels
  • Up to 4 FR channels
  • Up to 2 LIN channels
  • Wakeup/Sleep mode support
  • Startup <100 ms
  • Complete development environment included
  • PC connection via Ethernet
  • IP67
  • Temperature range -40°C to +85°C

Technical specifications

CPU

    • Freescale μC
      > MPC5567
      > 32 Bit, 120 MHz
    • Speicher
      > 2 MB Flash
      > 80kB RAM
      > 2 MB SRAM

    Host interfaces

    • 1 Ethernet
    • PTP (Precision Time Protocol IE1588) – available on request
    • 1 USB slave
    • 2 USB hosts

    Bus interfaces

    • 4 FlexRay (2 MFR4310, 2 E-Ray)
    • 5 CAN
    • 2 LIN or RS232
    • 1 SPI
    • 4 FlexTiny-Slots
    • Available FlexTinys:
      > FlexRay TJA 1080 A
      > CAN HS TJA 1041
      > CAN LS TJA1054
      > LIN TH 8082
      > RS232 MAX 3227
      > K line L9637

    I/0 interfaces

    • 4 Digital I/O
    • 5 A/D inputs
    • All interfaces are short-circuit proof
    • Debugger can access the processor from the outside via JTAG programming interface
    • The full NEXUS interface is still accessible in the device
